MUK65直线模组是滚珠丝杠为驱动，双导轨承载，定位精度为0.02mm，内部的滚珠丝杠的导程为5、10和20mm，直径为20mm，最大行程为1500mm，可用于要求高精度的行业，例如自动化行业，半导体行业。

技术参数

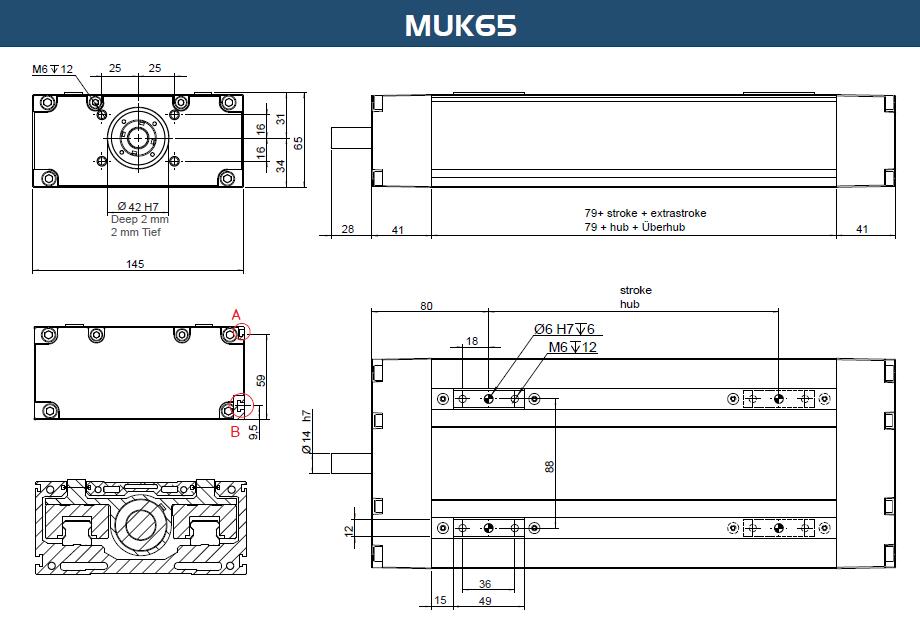

Size - 尺寸                                                             65×145

Max. stroke length - 最大行程                                     mm      1500

pitch/ 导程                                                       mm     5 10 20

丝杠直径                                                          mm      20

Base weight - 基本重量行程0mm                                     kg      7.8

Add weight for 100 mm of stroke - 重量每增加行程100 mm            kg      0.75

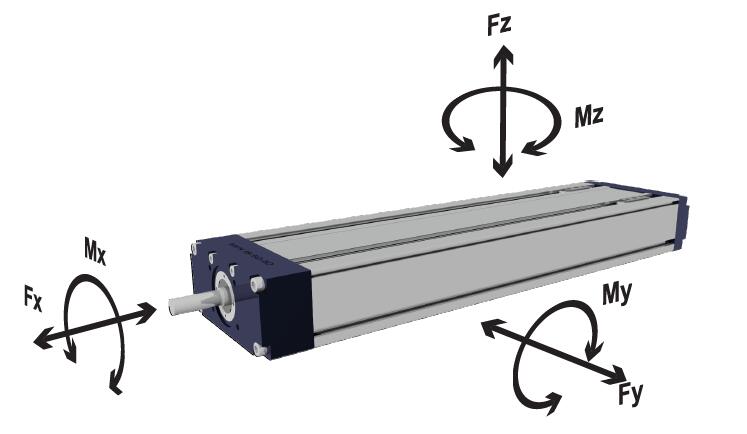

Max. load* - 最大负载参数值                                 Fx     N      2966

                                                            Fy     N      11200

                                                            Fz     N      11200

Moments* - 最大扭矩参数值                                   Mx     Nm     950

                                                            My     Nm     1100

                                                            Mz     Nm     1100

Inertia moment aluminum profile - 截面惯性矩                lx     Cm⁴         90

Inertia moment aluminum profile - 截面惯性矩                ly     Cm⁴         687

Repeatability - 重复定位精度                                                      mm      0.02
