Motus直线模组是意大利品牌，具备速度快，重复定位精度高，负载大，尺寸小，寿命长等优势，适合于自动化行业，光伏设备，上下料机械手、裁移设备、涂胶设备、贴片设备，半导体行业等。

技术参数

Size - 尺寸                                                             50×110

Max. stroke length - 最大行程                                     mm      1500

pitch/ 导程                                                       mm     5 10 16

丝杠直径                                                          mm      16

Base weight - 基本重量行程0mm                                     kg      6.5

Add weight for 100 mm of stroke - 重量每增加行程100 mm            kg      0.55

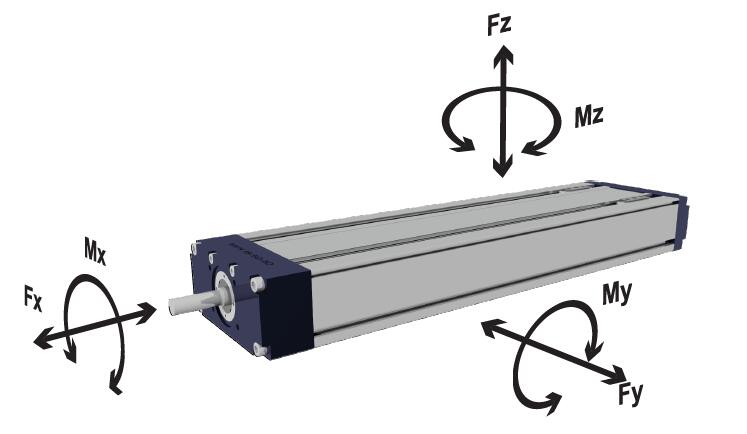

Max. load* - 最大负载参数值                                 Fx     N      1025

                                                            Fy     N      9600

                                                            Fz     N      9700

Moments* - 最大扭矩参数值                                   Mx     Nm     2750

                                                            My     Nm     900

                                                            Mz     Nm     900

Inertia moment aluminum profile - 截面惯性矩                lx     Cm⁴         30

Inertia moment aluminum profile - 截面惯性矩                ly     Cm⁴         209

Repeatability - 重复定位精度                                                          ^{mm     0.02}
