Motus直线模组是意大利品牌，具备速度快，重复定位精度高，负载大，尺寸小，寿命长等优势，适合于自动化行业，光伏设备，上下料机械手、裁移设备、涂胶设备、贴片设备，半导体行业等。

技术参数

Size - 尺寸                                                      42×42

Max. speed - 最大速度                                             m/s     3

Max. stroke length - 最大行程                                     mm      6700

Min. Stroke length - 最小行程                                     mm      100

Pulley drive ratio - 同步带轮行程/ 转                             mm      90

ATL 5齿型聚氨酯带钢丝 PU同步带间隙0，宽度12m m

Max rpm - 最大转速rpm                                             rpm     2000

Base weight - 基本重量行程0mm                                     kg      1.6

Add weight for 100 mm of stroke - 重量每增加行程100 mm            kg      0.25

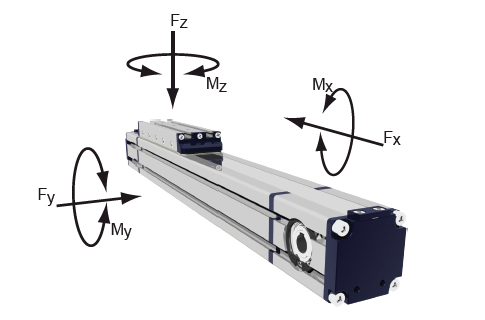

Max. load* - 最大负载参数值                                 Fx     N      460

                                                            Fy     N      1560

                                                            Fz     N      1560

Moments* - 最大扭矩参数值                                   Mx     Nm      20

                                                            My     Nm      55

                                                            Mz     Nm      55

Inertia moment aluminum profile - 截面惯性矩                lx     Cm4    11.8

Inertia moment aluminum profile - 截面惯性矩                ly     Cm4    14. 2

Repeatability - 重复定位精度                                       mm     0.05

ax. radial load on input shaft - 输出轴端最大径向负载               N      220

No load torque - 无负载转矩                                         Nm     0.3
